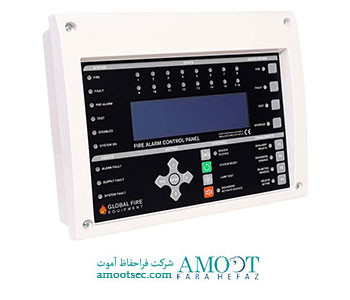

The CHAMELEON DISPLAY should not be considered a fully featured system repeater for Chameleon networks. The CHAMELEON DISPLAY acts as an extra display of the master panel display.
Non-networked panels may need a remotely accessed extra display. By applying an isolated CHAMELEON DISPLAY you will have a duplication of the panel fascia. Everything displayed in the connected panel is then copied to the CHAMELEON DISPLAY. Every key press action is assumed as though the input is actually taking place on the connected panel. For connection diagrams and project commissioning, please refer to the Chameleon Network manual, as well as the manual of the communication interface being used.
This solution is ideally for stand-alone panels. It is only possible to have one display connected per Chameleon connection available on panel. On networked systems, where the Chameleon panel connections are most needed, the use of CHAMELEON MINI REP system repeaters is recommended.
The CHAMELEON DISPLAY is compatible with all the CHAMELEON range of panels:
|PRIMARY SUPPLY||28.5V DC nominal (Max.)|
|QUIESCENT CURRENT||65 mA|
|OPERATING / STORAGE TEMPERATURE||-10ºC to 50ºC|
|HUMIDITY||Max. 85% RH Non-Condensing|
|INGRESS PROTECTION / MATERIAL||IP30 / ABS|
|DIMENSIONS||256 (L) x 194 (H) x 75 (W) mm|
|COLOUR||White (RAL 9003) or Red (RAL 3001)|
