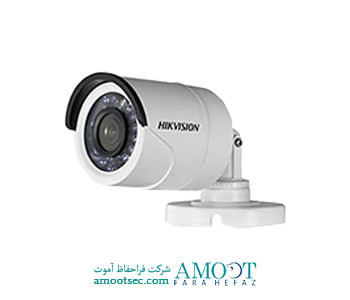

دوربین 2 مگاپیکسلی هایک ویژن مدل DS-2CD2023G0-I

Camera

Image Sensor:

1/2.8″ Progressive Scan CMOS

Signal System:

PAL/NTSC

Min. Illumination:

Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR

Shutter time:

1/3 s to 1/100,000 s

Slow shutter:

Support

Lens:

2.8 mm: horizontal FOV: 103°, vertical FOV: 59°, diagonal FOV: 118°
4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102°
6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62°
8 mm: horizontal FOV: 43°, vertical FOV: 23°, diagonal FOV: 50°

Lens Mount:

M12

 Adjustment Range:

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Day& Night:

IR cut filter with auto switch

Wide Dynamic Range:

120 dB

Digital noise reduction:

3D DNR

Focus:

Fixed

Compression Standard

Video Compression:

H.265+/H.265/H.264+/H.264/MJPEG

Video bit rate:

256Kbps~16Mbps

Triple Streams:

Yes


Max. Image Resolution:

1920 x 1080

Frame Rate:

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280×720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280×720)

Sub Stream:

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Third Stream:

50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)

Image Enhancement:

BLC/3D DNR/ BLC

Image Settings:

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

Target Cropping:

No

ROI:

1 fixed region for main stream and sub-stream

Day/Night Switch:

Day/Night/Auto/Schedule

Network

Network Storage:

microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR

Alarm Trigger:

Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour

General Function:

One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering

System Compatibility:

ONVIF (Profile S, Profile G),ISAPI

Interface

Communication Interface:

1 RJ45 10M / 100M Ethernet interface

On-board storage:

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

Yes

Smart Feature-set

Behavior Analysis:

Line crossing detection, intrusion detection

Line Crossing Detection:

Cross a pre-defined virtual line

Intrusion Detection:

Enter and loiter in a pre-defined virtual region

Recognition:

Face Detection

General

Operating Conditions:

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:

12 VDC ± 25%, PoE (802.3af Class3)

Power Consumption:

12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W

Weather Proof:

IP67

IR Range:

Up to 30m

Dimensions:

Camera: Φ 70 × 155.03 mm (Φ 2.8″ × 6.1″)
Package: 216 × 121 × 118 mm (8.5″ × 4.8″ × 4.7″)

Weight:

Camera: Approx. 420 g (0.9 lb.)
With Package: Approx. 700 g (1.5 lb.)
