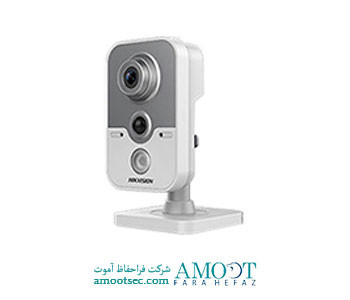

دوربین 2 مگاپیکسلی هایک ویژن مدل DS-2CD2420F-IW

Camera

Image Sensor:

|

1/2.8″ Progressive Scan CMOS

Min. Illumination:

|

0.01Lux @(F1.2,AGC ON), 0 Lux with IR
0.028Lux @(F2.0,AGC ON), 0 Lux with IR

Shutter time:

|

1/3 s to 1/100,000 s

Lens:

|

[email protected] F2.0, Angle of view: 85°
(2.8mm, 6mm optional)

Lens Mount:

|

M12

Day& Night:

|

IR cut filter with auto switch

Wide Dynamic Range:

|

Digital WDR

Digital noise reduction:

|

3D DNR

Compression Standard

Video Compression:

|

H.264/MJPEG

H.264 code profile:

|

Main Profile

Video bit rate:

|

32Kbps~8Mbps

Audio Compression:

|

G.711/G.722.1/G.726/MP2L2

Audio bit rate:

|

64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2)


Max. Image Resolution:

|

1920 x 1080

Frame Rate:

|

50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)

Image Settings:

|

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC:

|

Yes, zone configurable

ROI:

|

Support

Network

Network Storage:

|

Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS)

Alarm Trigger:

|

Intrusion detection, Defocus detection, Motion detection, Face detection, line crossing detection,
Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception

Protocols:

|

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security:

|

One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering, Anonymous access

System Compatibility:

|

ONVIF, PSIA, CGI, ISAPI

Interface

Communication Interface:

|

1 RJ45 10M / 100M Ethernet interface

Alarm Input:

|

1

Alarm Output:

|

1

Wi-Fi Specification

Wireless Standards:

|

IEEE802.11b, 802.11g, 802.11n

Frequency Range:

|

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:

|

20/40MHz Support

Modulation Mode:

|

802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM

Security:

|

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Transmit Power:

|

11b: 17±1.5dBm @ 11Mbps
11g: 14±1.5dBm @ 54Mbps
11n: 12.5±1.5dBm

Receive Sensitivity:

|

11b: -90dBm @ 11Mbps (Typical)
11g: -75dBm @ 54Mpbs (Typical)
11n: -74dBm (Typical)

Transmission Rate:

|

11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps

Wireless Range:

|

50m(depend on environment)

Protocols:

|

802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM

General

Operating Conditions:

|

-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)

Power Supply:

|

12 VDC ± 10%, PoE (802.3af)

Power Consumption:

|

MAX. 4.5W

IR Range:

|

10 meters

PIR:

|

Angle: 80°
Range: 10m

Dimensions:

|

72.3×89.9×131.3

Weight:

|

400g(0.88lbs)

NOTE：:

|

“-W” series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support
the 802.1X protocol.
