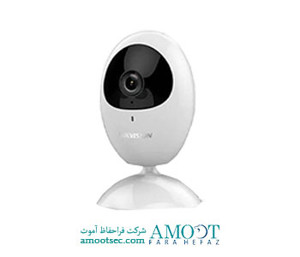

دوربین 2 مگاپیکسلی هایک ویژن مدل DS-2CV2U21FD-IW/32GB-T

Camera

Image Sensor:

|

1/2.8″ Progressive Scan CMOS

Min. Illumination:

|

0.01Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter time:

|

1/3 s to 1/100,000 s

Slow shutter:

|

Support

Lens:

|

2.8mm, horizontal field of view 105.8°

Lens Mount:

|

M12

Day& Night:

|

IR cut filter with auto switch

Wide Dynamic Range:

|

Digital WDR

Digital noise reduction:

|

3D DNR

Compression Standard

Video Compression:

|

H.264

H.264 code profile:

|

Baseline Profile/Main Profile

Video bit rate:

|

32Kbps~8Mbps

Audio Compression:

|

G.711/G.722.1/G.726/MP2L2

Audio bit rate:

|

64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)


Max. Image Resolution:

|

1920 x 1080

Main Stream:

|

50Hz: 25fps (1920 × 1080, 1280 ×720)
60Hz: 30fps (1920 × 1080, 1280 ×720)

Image Settings:

|

Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser

BLC:

|

Yes, zone configurable

ROI:

|

Support 1 fixed region for each stream

Day/Night Switch:

|

Support auto/scheduled

Network

General Function:

|

One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark

Alarm Trigger:

|

Video tampering, alarm input, alarm output, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Protocols:

|

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x

Interface

Audio:

|

Internal Microphone and Speaker

On-board storage:

|

Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

Reset Button:

|

Yes

Wi-Fi Specification (-W)

Wireless Standards:

|

IEEE802.11b, 802.11g, 802.11n

Frequency Range:

|

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth:

|

20/40MHz Support

Transmission Rate:

|

11b: 11Mbps
11g: 54Mbps
11n: up to 150Mbps

Wireless Range:

|

50m(depend on environment)

Protocols:

|

802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM

General

Memory Card:

|

DS-2CV2U21FD-IW: no memory card included
DS-2CV2U21FD-IW/16G-T: includes a 16 GB memory card
DS-2CV2U21FD-IW/32G-T: includes a 32 GB memory card
DS-2CV2U21FD-IW/64G-T: includes a 64 GB memory card

Operating Conditions:

|

-10°C ~ 40°C (14°F ~ 104°F), Humidity 95% or less (non-condensing)

Power Supply:

|

DC 5V ± 15 %, micro USB interface

Power Consumption:

|

Max. 4.5W

IR Range:

|

Up to 10 meters

Dimensions:

|

Φ 64 × 106.9 mm (Φ 2.52′ × 4.21′)

Weight:

|

115 g (0.25 lbs)
