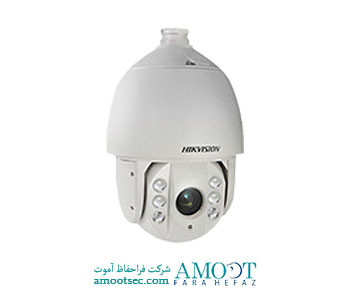

دوربین اسپیددام 1 مگاپیکسلی هایک ویژن مدل DS-2DE7184-AE

Panoramic Camera

Image Sensor:

1/2.8″ progressive scan CMOS

Max. Image Resolution:

1920 × 1080

Min. Illumination:

Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR

Lens:

f2mm/F2.0

Angle of View:

Horizontal field of view: 128.5° × 3
Vertical field of view: 75.7°
Diagonal field of view: 144°

Main Stream:

50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Sub Stream:

50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240)

Image Compression:

H.265/H.264

White Balance:

Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp

Shutter Time:

50 Hz: 1/1 s to 1/30,000 s
60 Hz: 1/1 s to 1/30,000 s

Day& Night:

ICR

Tracking PTZ Camera

Image Sensor:

1/2.8″ progressive scan CMOS

Max. Image Resolution:

1920 × 1080

Minimum Illumination:

Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR

Angle of View:

Horizontal field of view: 120° to 56.6° (wide – tele)
Vertical field of view: 61.8° to 31.7° (wide – tele)
Diagonal field of view: 149° to 65° (wide – tele)

Zoom Speed:

Approx.5.4 s (optical, wide – tele)

Focal Length:

2.8 mm to 12 mm, 4× optical zoom

White Balance:

Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

Support

Shutter Time:

50 Hz: 1/1 s to 1/30,000 s
60 Hz: 1/1 s to 1/30,000 s

Day & Night:

IR Cut Filter

Optical Defog:

Support

ROI encoding:

Main stream and sub-stream respectively supports eight fixed areas.

Main Stream:

50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)

Sub Stream:

50Hz:25fps (704×576, 352×288, 176×144)
60Hz:30fps (704×480, 352×240, 176×120)

Image Compression:

H.265/H.264

WDR:

Digital WDR

Privacy Masking:

8 programmable privacy masks

Pan and Tilt

Pan Range:

0° to 350°

Pan Speed:

0.1°/s to 30°/s (configurable), preset speed: 30°/s

Tilt Range:

0° to 90°

Tilt Speed:

0.1°/s to 30°/s (configurable), preset speed: 30°/s

Number of Preset:

300

Scheduled Task:

Preset/Dome Reboot/Dome Adjust

Power-off memory:

Support

System Function

IR:

Up to 10 m IR distance

PTZ Linkage:

Support

Smart Detection:

Motion Detection, Video Tampering Detection, Exception

Input & Output

Audio Input:

1-ch audio input

Audio Output:

1-ch audio output

Network

Audio compression:

G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM

Protocol:

IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour

Application programming:

Open-ended API, support Onvif, ISAPI, CGI

System Integration

Menu:

English

User/Host Level:

Up to 32 users,3 Levels: Administrator, Operator and User

Security Measures:

User authentication (ID and PW); Host authentication (MAC address); IP address filtering

Web Browser:

IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51

Simultaneous Live View:

Up to 8 × 2 channels

Ethernet:

1 RJ45 10 M/100 M Ethernet

Onboard Storage:

Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording

General

Power supply:

12 VDC & PoE+ (802.3 at, class 4)

Consumption (without hard disk):

Max.24 W (Max. 6 W for IR)

Working temperature:

-10°C to 50°C (14°F to 122°F)

Working humidity:

Humidity 90% or less

Material:

PC + ABS & Aluminum alloy

Protection Level:

TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection

Dimensions (W×D×H):

Φ 183 mm × 133.2 mm (Φ 7.20″ × 5.24″)

Weight:

Approx. 0.9 kg (1.98 lb)
