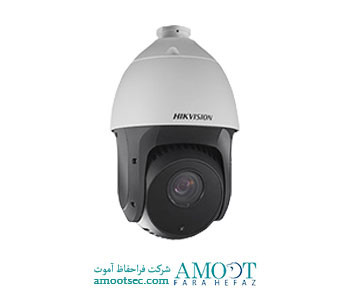

دوربین اسپیددام 1 مگا پیکسلی هایک ویژن مدل DS-2DE5220IW-AE

Image Sensor:

|

1/2.8″ Progressive Scan CMOS

Effective Pixels:

|

1920(H)x1080(V)

Signal System:

|

PAL/NTSC

Minimum Illumination:

|

F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR

White Balance:

|

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

AGC:

|

Auto/Manual

BLC:

|

ON/OFF

HLC:

|

Support

Smart defog:

|

Support

WDR:

|

DWDR

Shutter Time:

|

1-1/10,000s

Digital Zoom:

|

16X

Privacy Masking:

|

8 privacy masks programmable

Auto Focus:

|

Auto / Semi-automatic / Manual

Lens

Focal Length:

|

4.7-94.0mm, 20x

Zoom Speed:

|

Approx.3s(Optical Wide~Tele)

Angle of View:

|

58.3-3.2 degree (Wide~Tele)

Minimum Working Distance:

|

10~1,000mm(Wide~Tele)

Aperture Range:

|

F1.6~F3.5

Pan & Tilt

Pan Range:

|

360° continuous

Pan Speed:

|

Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s

Tilt Range:

|

-15°-90° (Auto Flip )

Tilt Speed:

|

Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s

Proportional Zoom:

|

Rotation speed can be adjusted automatically according to zoom multiples

Number of Preset:

|

300

Patrol:

|

8 patrols, up to 32 presets per patrol

Power loss recovery:

|

Support

Park Action:

|

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

PTZ  Position Display:

|

ON/OFF

Freeze Frame:

|

Support

Infrared

IR irradiation distance:

|

150m

IR irradiation angle:

|

Adjustable by zoom

Alarm

Alarm Input:

|

2

Alarm Output:

|

1

Alarm Actions:

|

Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage

Input & Output

Monitor Output:

|

1.0Vp-p, 75 Ohm, BNC

Audio Input:

|

1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%

Audio Output:

|

1 Audio output interface
Line level, impedance: 600Ω

Network

Ethernet:

|

10Base -T, /100Base-TX, RJ45 Connector

Max.Image Resolution:

|

1920×1080

Main Stream:

|

50Hz:25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ;
60Hz:30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720)

Sub Stream:

|

50Hz: 25fps(704×576, 640×480,352×288); 60Hz: 30fps(704×480, 640×480,352×240)

Third Stream:

|

50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)

Video Compression:

|

H.264 / MJPEG

ROI encoding:

|

Support 4 areas with adjustable levels

Audio Compression:

|

G.711ulaw/G.711alaw/G.726/MP2L2/G.722

No. of Simultaneous Users:

|

Up to 20 users

Dual Stream:

|

Support

Mini SD Card:

|

Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording

Security Measures:

|

User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering

Hik-Connect:

|

Support

Client GUI

Camera Control:

|

Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode

Date & Time Display:

|

Time: Week: Date, 6 formats on the Client

Client:

|

Support iVMS-4200

Web Browser:

|

IE 7+, Chrome 18 – 42, Firefox 5.0 +, Safari 5.02 +

General

Menu Language:

|

English

Power Supply:

|

24 VAC & Hi-PoE

Power Consumption:

|

Max.32W

Working Temperature/Humidity:

|

-30°C ~ 65°C (-22°F ~ 149°F)

Protection Level:

|

IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection

Mounting:

|

Various mounting modes optional

Dimensions:

|

Φ185(mm)×330(mm)

Weight (approx.):

|

4kg (8.81lbs)

Mount Option:

|

Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;
Swan-neck mount: DS-1619ZJ
