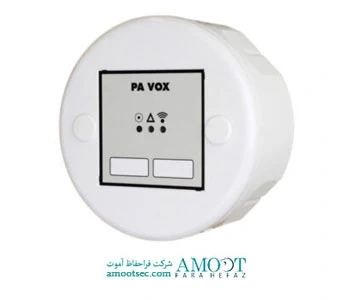

The GFE-PA-VOX C is a conventional PA Speaker Amplifier/Controller which is available in either red or white casings. The GFE-PA-VOX C is able to provide a maximum of 24W of sound output to a single PA speaker.
The GFE-PA-VOX C can broadcast pre-loaded messages. The desired message can be downloaded from our own proprietary recording PC application via a standard USB interface. This product is controlled by a conventional sounder circuit and externally powered.
|SUPPLY VOLTAGE||Sounder Circuit: 17-30 V DC – External Supply: 20-30 V DC|
|SOUNDER CIRCUIT – CURRENT||2.0 mA (Sounder Active|
|EXTERNAL SUPPLY – CURRENT||5.0 mA (Quiescent) – 1.0 A (Sounder Active)|
|POWER OUTPUT MAX||24 Watts rms|
|MAX. CABLE SIZE||2.5 mm²|
|OPERATING TEMPERATURE||-10ºC to 50ºC|
|MAX. HUMIDITY||85% RH Non-Condensing|
|ENCLOSURE / MATERIAL||White or Red / ABS|
|PROTECTION CATEGORY||IP44 – Type A – Indoor use|
|DIMENSIONS||100 (D) x 48 (H) mm|
|WEIGHT||125 g / 160 g inc. packaging|
