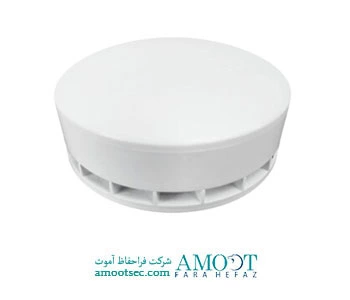

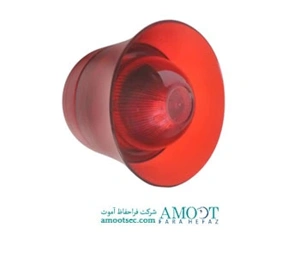

The VALKYRIE CS is a wall mounted conventional sounder/beacon with low power consumption.
Four different tones are available and selected using DIL switches 1 and 2.
Both continuous and pulsing outputs are provided via separate negative supply connections, allowing for the presence of differentiated evacuation and alert sounds.
|SUPPLY VOLTAGE||20V to 30V DC|
|CURRENT – SOUNDER/ BEACON ACTIVE||10 mA – 280 mW @ 28V DC|
|MAXIMUM SOUNDER OUTPUT||97 dB (@ 1 meter – 30V DC)|
|MAX. CABLE SIZE||2.5 mm²|
|OPERATING TEMPERATURE||-10ºC to 55ºC|
|MAX. HUMIDITY||95% RH Non-Condensing|
|CASE MATERIAL||ABS and PC|
|COLOUR||Red or White|
|PROTECTION CATEGORY||IP21C – Type A – Indoor use|
|DIMENSIONS||110 (D) x 85 (H) mm inc. base|
|WEIGHT||254 g – inc. mounting base|
