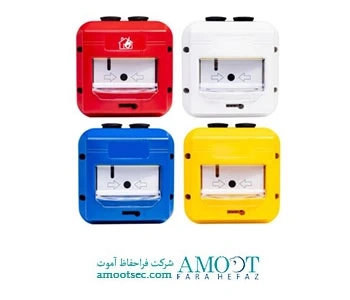

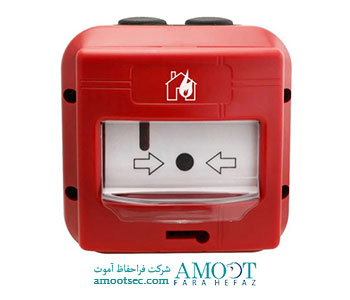

The GFE-MCPE-C-IP67 is a conventional Manual Call Point, designed and manufactured to comply with EN54-11 and compatible with all GFE conventional control panels that are specially recommended for outdoor use.
The unit is supplied complete with a hinged flap which protects the trigger element from accidental activation and reduces malicious activations as two actions are required in order to activate the device.
The GFE-MCPE-C-IP67 provides an ideal solution for most conventional fire alarm systems. It is ideal for all outside applications such as oil rigs, ships and factories, as well as wash down areas that are sensitive to broken glass.
|OPERATION VOLTAGE||25 (+5; -15) [V DC]|
|CURRENT – QUIESCENT||200 uA|
|ALARM||50 mA @ 24V DC nominal – Alarm Resistance 470 Ohms max.|
|OPERATING TEMPERATURE||-10°C to +55°C|
|STORAGE TEMPERATURE||-30°C to +60°C|
|COLOUR / CASE MATERIAL||Red and others / ABS & Clear/ PC – Flame Retardant 94 V0|
|PROTECTION||IP67 – Type A – Outdoor Use|
|MAX. HUMIDITY||95% RH Non-Condensing @ 40°C|
|DIMENSIONS||111.9 (H) x 111.9 (W) x 81.3 (D) mm|
|WEIGHT||262 g includes back box and fixings|
