شستی آدرس پذیر گلوبال فایر GFE MCPE A

دسته بندی: سیستم اعلام حریق / سیستم اعلام حریق آدرس پذیر / شستی اعلام حریق آدرس پذیر
رنگ:
سایز:
وضعیت: تماس بگیرید
تومان
تومان تومان
توضیحات

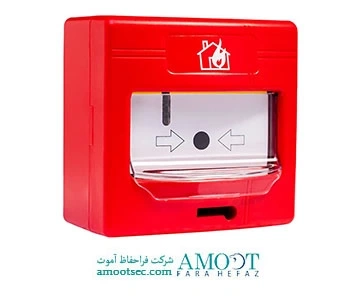

The GFE-MCPE-A is an analogue addressable Manual Call Point designed and manufactured to comply with EN54-11 and compatible with all GFE addressable control panels. With its enhanced communications mechanism, the typical response time when in alarm is approximately one second, depending on the number of call points connected to the device loop. A version incorporating a loop isolator is also available.



OPERATION VOLTAGE 20-30V DC
CURRENTE – QUIESCENT / ALARM 500 uA / 3.5 mA
CABLE SIZE 0.5-1.5 mm²
OPERATING TEMPERATURE -10ºC to +55ºC
STORAGE TEMPERATURE -30°C to +60°C
INGRESS PROTECTION GRADE IP24D – Type A – Indoor Use
MAX. HUMIDITY 95% RH Non-Condensing @ 40°C
COLOUR / CASE MATERIAL Red / ABS & Clear/ PC – Flame Retardant – Rating 94V0
DIMENSIONS – SURFACE MOUNTED 92.6 (W) x 92.6 (H) x 60.1 (D) mm
DIMENSIONS – FLUSH MOUNTED 92.6 (W) x 92.6 (H) x 27.8 (D) mm
WEIGHT 152g includes back box and fixings
