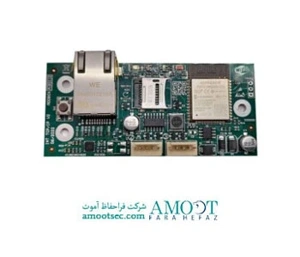

The INT-TCP/IP-P2P-GATEWAY interface provides numerous advanced features and functionalities to Chameleon Panels (G-One, GEKKO, OCTO+ & CHAMELEON REP). With the interface, panel-to-panel networking can be easily integrated.
One of the primary advantages of this interface is its advanced hardware, which makes it simple to integrate with existing LANs through Wi-Fi or an optional Ethernet cable. Furthermore, an SD card socket enables easy firmware upgrades whenever necessary. Another added feature is the ability to configure the interface in one of three mode types: PANEL to PANEL network, MODBUS, ODYSSEY, or ESPA.
|SUPPLY VOLTAGE||20 to 30V DC|
|SUPPLY CURRENT||28 mA|
|CONFIGURATION||Panel to Panel networking, ODYSSEY, Modbus or ESPA|
|COMMUNICATION CONNECTOR||Ethernet RJ45, Wi-Fi 2,4GHZ, BLE (Bluetooth Low Energy)|
|INPUT||Reset as default (advanced configurations)|
|OPERATING TEMPERATURE||-10ºC to 50ºC|
|DIMENSIONS||90 © x 40 (A) mm|
|COMPATIBILITY||Windows XP/7/8/10, MacOS, Linux, Android, IOS|
|PANEL COMPATIBILITY||OCTO+, GEKKO, G-One, NODE+ and CHAMELEON REP|
|RJ45 CABLE||Cat 5e/ Cat 6|
|WEB BROWSER ACCESS||Google Chrome or Firefox|
