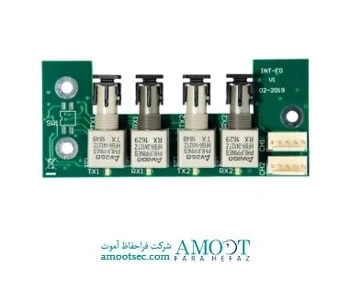

The INT-FO-P2P-D interface allows a double peer-to-peer fibre option connection, making it possible to build a closed loop, ‘daisy-chained’ communication network between GFE’s CHAMELEON Panels (GEKKO, OCTO+, NODE+ and CHAMELEON REPEATER).

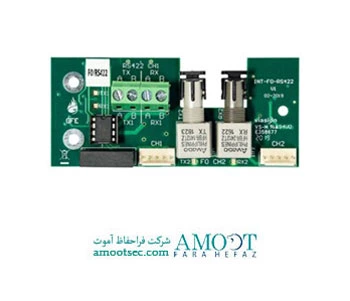

The INT-FO-P2P-S interface allows one single fibre optic connection. It is mainly used for integration to third party BMS systems or for a single extension connection to a CHAMELEON Display.
POWER SUPPLY RATING | 24V DC (17V to 30V DC) |
SUPPLY CURRENT | 15 mA |
RECOMMENDED CABLE / CONNECTOR | Multi-mode 62.5/125 μm with ST Connector |
MAXIMUM CABLE DISTANCE | 2500m per connection |
OPERATING/ STORAGE TEMPERATURE | -10ºC to 50ºC |
HUMIDITY | Max 85% RH Non-Condensing |
PROTECTION | IP30 |
DIMENSIONS | 90 (L) x 40 (H) x 20 (W) mm |
WEIGHT | 33 g |
COMPATIBILITY | All CHAMELEON Panels (GEKKO, OCTO+, NODE+, CHAMELEON-REP) |
