اینترفیس گلوبال فایر ADLI V2

دسته بندی: سیستم اعلام حریق / اینترفیس اعلام حریق / اینترفیس گلوبال فایر panel to panel
رنگ:
سایز:
وضعیت: تماس بگیرید
تومان
تومان تومان
توضیحات

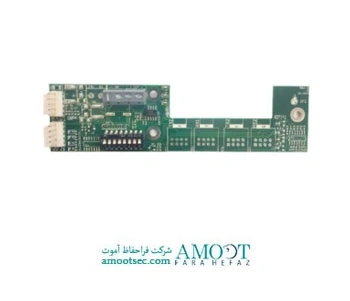

The ADLI V2 is used as an interface between an ORION conventional panel and any of GFE’s analogue addressable systems. It allows the addressable panel to monitor and control the status of the conventional unit.

The module transmits the status of the ORION Conventional Panel to the analogue addressable panel, both in terms of Fire and Fault conditions. Only one address is occupied per module. The module is reported by the addressable system as a ZONE MONITORING UNIT. The unit is also equipped with three LEDs that provide an optical indication of the module’s status, namely: Polling Rate (green), Faults (yellow) and Fire (red).

Finally, this unit allows the ORION panel to be controlled remotely from any of GFE’s analogue addressable panels, allowing the user to remotely silence/resound alarms (evacuation) and RESET.



PRIMARY SUPPLY VOLTAGE – IN Powered by conventional panel – 28.5V DC
SUPPLY CURRENT 3 mA (quiescent) – 4.5 mA (Alarm or Fault)
MAX. HUMIDITY 95 % RH Non-Condensing
OPERATING TEMPERATURE 0ºC to 40ºC
DIMENSIONS 135 (L) x 36 (W) x 13 (H) mm
WEIGHT 20 g
