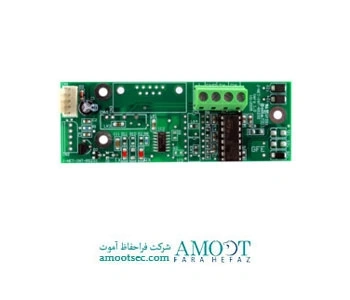

The ORION-INT-RS-232 interface module allows GFE’s ORION conventional panels to be interfaced to Orion Mini-Reps and Orion-Reps using a 4-core data communication cable suitable for serial data transmission.
The maximum distance between panel and repeater is 100m.
This interface is compatible with the following panels and repeaters:
ORION Conventional Panel 2, 4 and 8 zones – version 1.5 and above
ORION REP and ORION MINI-RE
SUPPLY VOLTAGE | 28 V DC nominal – range 17 to 30 V DC |
SUPPLY CURRENT | 5 mA |
SOFTWARE & HARDWARE COMPATIBILITY | ORION Conventional Panel-version 1.5 and above ORION MINI-REP and ORION REP |
MAX. HUMIDITY | 95% RH Non-Condensing |
OPERATING TEMPERATURE | -10ºC to 50ºC |
DIMENSIONS | 100.3 (L) x 35 (W) x 18 (H) mm |
WEIGHT | 20 g |
