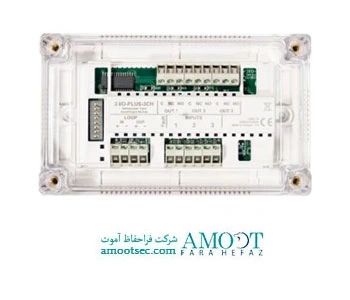

The 3 I/O PLUS Modules are fully monitored loop powered devices which permit the interfacing of third-party equipment with the fire alarm control panel using normally open dry contact connections. Each module can be fitted with a maximum of three inputs and three outputs.
The connection to each input is monitored for fault (open or short circuit) and alarm conditions.
The interface is used to monitor the contacts of an external system which must be interfaced to the fire alarm system, for example a flow switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in gas extinguishing systems, etc.
SUPPLY VOLTAGE | Loop Powered 20V to 30V DC |
LOOP CURRENT – QUIESCENT | 1.4 mA (1 ch.) – 1.5 mA (2 ch.) – 1.6 mA (3 ch.) |
LOOP CURRENT – ALARM / SHORT-CIRCUIT | IQ+ 1.2 mA for each I/P in alarm / IQ+ 1.4 mA max. |
LOOP CURRENT – OPEN CIRCUIT | IQ+ 1.0 mA max. |
LOOP CURRENT – OUTPUT ACTIVE | IQ+ 1.1 mA for each O/P activated |
OUTPUT RELAY CONTACT RATING | 2A 30V DC / 0.5A 125V AC |
CABLE SIZE | 0.5-2.5 mm² |
OPERATING TEMPERATURE | -10ºC to +50ºC |
HUMIDITY / PROTECTION | Max. 95% no condensation |
DIMENSIONS | 150 (W) x 90 (L) x 32 (H) mm |
WEIGHT | 216 g inc. packaging |
