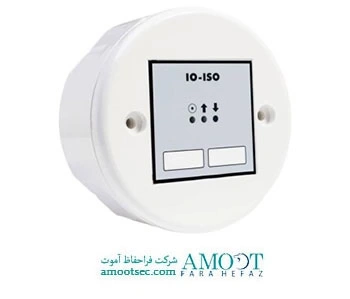

The addressable Input/Output module is a fully monitored device which permits the interfacing of third-party equipment with the fire alarm control panel using normally open dry contact connections, while also providing a changeover output relay to control ancillary equipment.
The interface is used to monitor the contacts of an external system which must be interfaced to the fire alarm system, for example a flow switch in a sprinkler system.
The output relay can be programmed to close fire doors, activate smoke removal systems, etc.
|SUPPLY VOLTAGE||Loop Powered – 17V to 30V DC|
|LOOP CURRENT – QUIESCENT||I/P: OK 0.46 mA – FLT OC 0.33 mA – FLT SC 0.79 mA|
|LOOP CURRENT – ALARM LED ILLUMINATED||2.0 mA +9.8 mA with Relay Active|
|MAX. CABLE SIZE||2.5 mm²|
|OPERATING TEMPERATURE||-10ºC to 50ºC|
|MAX. HUMIDITY||95% RH Non-Condensing|
|ENCLOSURE||White or Red|
|DIMENSIONS||100 (D) x 48 (H) mm|
|WEIGHT||Module: 29 g / Module + box: 134 g|
