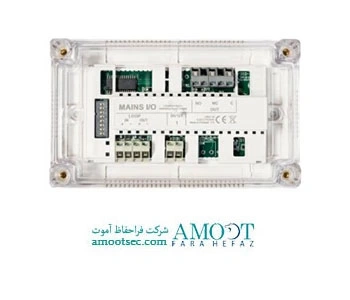

The MAINS I/O modules are fully monitored loop powered devices which permit the interfacing of third-party equipment with the fire alarm control panel using normally open dry contact connections.
The connection to the input is monitored for fault (open or short circuit) and alarm conditions. The interface is used to monitor the contacts of an external system which must be interfaced to the fire alarm system, for example a flow switch in a sprinkler system to indicate if the sprinklers have been activated or extinguishant level monitoring in gas extinguishing systems, etc.
The Module is provided with a loop short-circuit isolator and with a voltage-free single-pole changeover mains rated output. The output relay is always powered directly from the detection loop. An external 24V DC power supply is not required. Relay operation is confirmed by an onboard red LED.
|SUPPLY VOLTAGE||Loop Powered – 17 V to 30 V DC|
|LOOP CURRENT – QUIESCENT||1.3 mA|
|LOOP CURRENT – ALARM||2.9 mA|
|LOOP CURRENT – FAULT||2.9 mA (SC) – 2.6 mA (OC)|
|LOOP CURRENT – OUTPUT ACTIVE||2.8 mA|
|OUTPUT RELAY CONTACT RATING||8A 250 VAC/ 30 V DC|
|MAX. CABLE SIZE||2.5 mm²|
|OPERATING TEMPERATURE||-10ºC to 50ºC|
|MAX. HUMIDITY||95% RH Non-Condensing|
|DIMENSIONS||90 (L) x 150 (W) x 32 (H) mm|
|WEIGHT||210 g – boxed|
