The MAM-LSC enables the connection and addressing of conventional sounders/beacons.
With its small and convenient 8-way DIL switch for address setting and configuration, the MAM provides the facility to upgrade all the components of a conventional system to a full addressable system, making it ideal for retrofit installations.
The MAM is fully compatible with all our standard addressable modules, addressable sounders, addressable Manual Call Points and GFE detectors, making extensions to existing systems very straightforward.

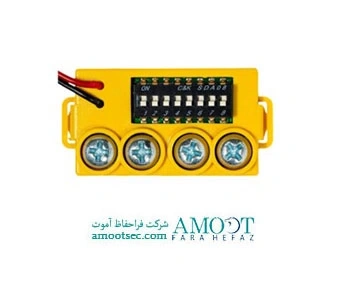

To assist in easy identification, the MAM-LSC is supplied in a mustard coloured plastic casing.
|SUPPLY VOLTAGE||Loop Powered – 17 V to 30 V DC|
|LOOP CURRENT – QUIESCENT||1.1 mA|
|LOOP CURRENT – ALARM||12 mA|
|ADDRESS RANGE||1-125 (Detectors, MCP, I/O) 94-125 (Sounder/ Beacons)|
|MAX. CABLE SIZE||2.5 mm²|
|MAX. HUMIDITY||95% RH Non-Condensing|
|OPERATING TEMPERATURE||-10ºC to 50ºC|
|DIMENSIONS||48 (L) x 24 (W) x 12 (H) mm|
