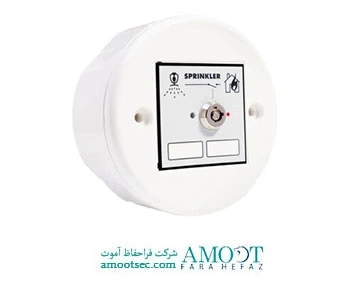

ماژول گلوبال فایر Sprinkler Switch

دسته بندی: سیستم اعلام حریق / سیستم اعلام حریق آدرس پذیر / ماژول اعلام حریق آدرس پذیر
رنگ:
سایز:
وضعیت: تماس بگیرید
تومان
تومان تومان
توضیحات

The addressable Sprinkler Switch module is a fully monitored device which enables the interfacing of sprinklers switch systems with the fire alarm control panel using normally open dry contact connections, while also providing a changeover output relay.

The integrated LED will turn yellow whenever the module is disabled, i.e. the key turned to the ON position, and will turn red when there is an alarm condition at the module’s input.



SUPPLY VOLTAGE Loop Powered – 17 V to 30 V DC
LOOP CURRENT – QUIESCENT I/P: OK 0.46 mA – FLT OC 0.33 mA – FLT SC 0.79 mA
LOOP CURRENT – ALARM LED ILLUMINATED 2.0 mA +9.8 mA with Relay Active
MAX. CABLE SIZE 2.5 mm²
PROTECTION IP43
OPERATING TEMPERATURE -10ºC to 50ºC
MAX. HUMIDITY 95% RH Non-Condensing
ENCLOSURE White or Red
MATERIAL ABS
DIMENSIONS 100 (D) x 48 (H) mm
WEIGHT – MODULE 29 g
WEIGHT – BOXED 152 g
