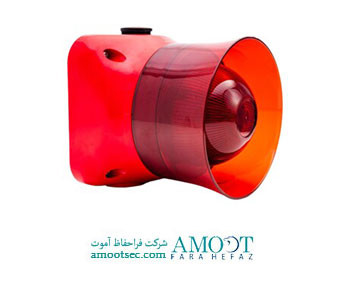

The VALKYRIE AS IP65 is a wall mounted addressable sounder/beacon with low power consumption. It is specifically designed to be used outdoors. Up to 32 individually addressed sounders can be installed per loop, using the address range 94 to 125.
When individual address reporting is not required, VALKYRIE AS IP65 can be configured as a shadow sounder so the sounders don’t occupy an address in the loop and therefore free up addresses for more detection devices. Shadow sounders do not report back to the control panel so their presence on the loop is not monitored.
SUPPLY VOLTAGE 20V to 30V DC
LOOP CURRENT – SOUNDER/ BEACON ACTIVE 10 mA – 280 mW @ 28V DC inc. isolator
MAXIMUM SOUNDER OUTPUT 100 dB (@ 1 meter – 30V DC)
MAX. CABLE SIZE 0.5-2.5 mm²
OPERATING TEMPERATURE -25ºC to 70ºC
MAX. HUMIDITY 95% RH Non-Condensing
CASE MATERIAL ABS and PC
PROTECTION CATEGORY IP65 – Type B – Outdoor use
DIMENSIONS 112 (D) x 110 (H) mm inc. base
WEIGHT 315 g / 350 g – including packaging
