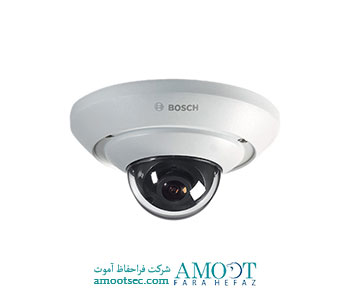

دوربین مداربسته بوشNUC-51051-F4

Subtypes

NUC-51051-F4

FLEXIDOME IP panoramic 5000 MP

Basic Features

Resolution

۵MP

Image sensor type

۱/۲.۷-inch  (۱۰۸۰p) 1/3-inch  (۵MP)

Max. frames per second (fps)

۳۰

Indoor / outdoor

 √

Day / night

 Auto, Color, Monochrome

Built in ir

X

Wide Dynamic Range

۷۶ dB (1080p) 65 dB (5MP)

ONVIF conformant

√

Built-in microphone

 X

Power over Ethernet (PoE)

√

Advanced Features

Compression

  H.264 MP (Main Profile); M-JPEG

Multi-streaming

√

Intelligent Dynamic Noise Reduction

√

Intelligent streaming

√

Intelligent Auto Exposure

X

Remote commissioning

X

Privacy masking

√

Region Of Interest (ROI) & E-PTZ

ROI & E-PTZ

Region Of Interest tracking

 X

No. of presets / guard tours

X

Wiper

X

Thermal

X

Alarm triggering

 X

Video analytics at the edge

√

Tamper detection

√

Video motion detection

√

Audio detection

X

Face detection

  X

PTZ Intelligent Tracking

X

Sensitivity

Min. illumination day mode (color)

۰.۴ lx for1080 and 0.8 lx for 5mp

Min. Illumination night mode (B/W)

۱ lx for 1080 and 2 lx for 5 mp

Starlight (extreme low-light)

 X

Integrated IR-lighting

  X

Optional IR-lighting

X

Lens

Automatic Back Focus (ABF)

 X

Varifocal

X

Automatic Varifocal (AVF)

X

Iris control

  Fixed iris

Focal length from

X

Focal length till

 X

Horizontal Angle of View (HAoV)

  ۷۴° x 52°

Min. view angle (H)

–

Min. view angle (V)

–

Max. view angle (H)

–

Max. view angle (V)

–

DCRI distances (in m with 100 lux illumination)

Detection

–

Classification

–

Recognition

–

Identification

–

Storage

(micro)SD card slot

√

Direct-to-iSCSI

√

Cloud storage

  √

Connections

Alarm input / output

√

Audio in/out

√

Hybrid

  X

Confrontation monitor

X

۱۲VDC power output

√

Housing

Weather rating

IP66

Vandal resistant

IK10+

Corrosion resistant

 X

Operating temperature

-۳۰ ºC to +50 ºC
