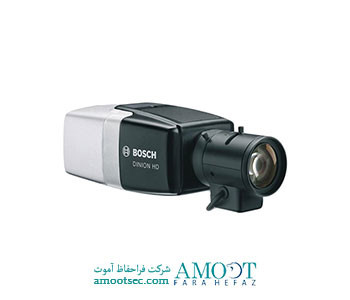

دوربین مداربسته بوش NBN-71022-B

Subtypes

NBN-71022-B

DINION IP 7000 HD

Basic Features

Resolution

۲.۰۳MP/1080p

Image sensor type

۱/۲.۷‑inch CMOS

Max. frames per second (fps)

۳۰ [email protected] 1080p

Indoor / outdoor

Indoor / outdoor WITH HOUSING

Day / night

Day/Night

Built in ir

X

Wide Dynamic Range

۷۶ db

ONVIF conformant

√

Built-in microphone

X

Power over Ethernet (PoE)

√

Advanced Features

Compression

  H.264 (MP); M- JPEG

Multi-streaming

√

Intelligent Dynamic Noise Reduction

√

Intelligent streaming

√

Intelligent Auto Exposure

√

Remote commissioning

X

Privacy masking

√

Region Of Interest (ROI) & E-PTZ

√ROI& E-PTZ

Region Of Interest tracking

√

No. of presets / guard tours

√

Wiper

X

Thermal

X

Alarm triggering

√

Video analytics at the edge

X

Tamper detection

√

Video motion detection

√

Audio detection

√

Face detection

√

PTZ Intelligent Tracking

√

Sensitivity

Min. illumination day mode (color)

۰.۲۲ lux

Min. Illumination night mode (B/W)

۰.۰۵ lux

Starlight (extreme low-light)

X

Integrated IR-lighting

X

Optional IR-lighting

X

Lens

Automatic Back Focus (ABF)

√

Varifocal

X

Automatic Varifocal (AVF)

X

Iris control

X

Focal length from

C/CS mount (NBN), 9 – 40 mm (NKN-71022-BA4),
۳.۸ – ۱۳ mm (NKN-71022-BA3)

Focal length till

C/CS mount (NBN), 9 – 40 mm (NKN-71022-BA4),
۳.۸ – ۱۳ mm (NKN-71022-BA3)

Horizontal Angle of View (HAoV)

depending on optional lens

Min. view angle (H)

Min. view angle (V)

Max. view angle (H)

Max. view angle (V)

DCRI distances (in m with 100 lux illumination)

Detection

–

Classification

–

Recognition

–

Identification

–

Storage

(micro)SD card slot

√

Direct-to-iSCSI

√

Cloud storage

√

Connections

Alarm input / output

√

Audio in/out

√

Hybrid

√

Confrontation monitor

X

۱۲VDC power output

PoE and +12 VDC

Housing

Weather rating

X

Vandal resistant

X

Corrosion resistant

 X

Operating temperature

-۲۰° to 55° C
