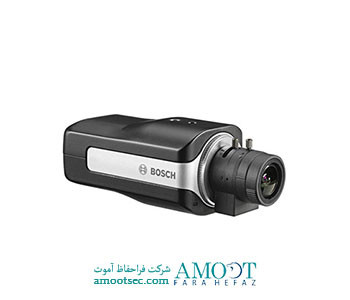

دوربین مداربسته بوش NBN-50022-V3

Subtypes

NBN-50022-V3

DINION IP 5000 HD

Basic Features

Resolution

۲MP

Image sensor type

۱/۲.۷‑inch CMOS

Max. frames per second (fps)

۳۰ [email protected]

Indoor / outdoor

Indoor/Outdoor(WITH HOUSING)

Day / night

Day/Night

Built in ir

X

Wide Dynamic Range

۷۶db

ONVIF conformant

√

Built-in microphone

√

Power over Ethernet (PoE)

√

Advanced Features

Compression

  H.264 (MP); M- JPEG

Multi-streaming

√

Intelligent Dynamic Noise Reduction

√

Intelligent streaming

√

Intelligent Auto Exposure

X

Remote commissioning

X

Privacy masking

√

Region Of Interest (ROI) & E-PTZ

√ROI& E-PTZ

Region Of Interest tracking

√

No. of presets / guard tours

X

Wiper

X

Thermal

X

Alarm triggering

√

Video analytics at the edge

X

Tamper detection

√

Video motion detection

√

Audio detection

√

Face detection

X

PTZ Intelligent Tracking

X

Sensitivity

Min. illumination day mode (color)

۰.۲۵ lux

Min. Illumination night mode (B/W)

۰.۰۵ lux

Starlight (extreme low-light)

X

Integrated IR-lighting

X

Optional IR-lighting

X

Lens

Automatic Back Focus (ABF)

X

Varifocal

√

Automatic Varifocal (AVF)

X

Iris control

Automatic iris control

Focal length from

۳.۳ MM

Focal length till

۱۲ MM

Horizontal Angle of View (HAoV)

۳۴° – ۱۱۰°

Min. view angle (H)

 ۳۴°

Min. view angle (V)

۱۸º

Max. view angle (H)

۱۱۰°

Max. view angle (V)

۵۸º

DCRI distances (in m with 100 lux illumination)

Detection

۲۷-۱۲۵  m

Classification

۱۱-۵۰  m

Recognition

۵-۲۵  m

Identification

۳-۱۳  m

Storage

(micro)SD card slot

√

Direct-to-iSCSI

√

Cloud storage

√

Connections

Alarm input / output

√

Audio in/out

√

Hybrid

√

Confrontation monitor

√

۱۲VDC power output

PoE and +12 VDC

Housing

Weather rating

X

Vandal resistant

X

Corrosion resistant

 X

Operating temperature

-۳۰° to 50° C
