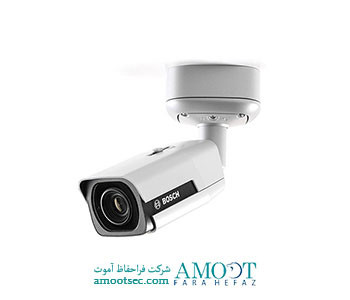

دوربین مداربسته بوش NBE-6502-AL

Subtypes

NBE-6502-AL

DINION IP starlight 6000i IR

Basic Features

Resolution

۲.۱۲MP

Image sensor type

۱/۲.۸‑inch CMOS

Max. frames per second (fps)

۶۰ [email protected]

Indoor / outdoor

Indoor/Outdoor

Day / night

Day/Night

Built in ir

√

Wide Dynamic Range

۱۳۴db

ONVIF conformant

√

Built-in microphone

X

Power over Ethernet (PoE)

√

Advanced Features

Compression

H.265; H.264; M- JPEG

Multi-streaming

√

Intelligent Dynamic Noise Reduction

√

Intelligent streaming

√

Intelligent Auto Exposure

 √

Remote commissioning

X

Privacy masking

√

Region Of Interest (ROI) & E-PTZ

√ROI& E-PTZ

Region Of Interest tracking

√

No. of presets / guard tours

X

Wiper

X

Thermal

X

Alarm triggering

√

Video analytics at the edge

√

Tamper detection

√

Video motion detection

√

Audio detection

√

Face detection

√

PTZ Intelligent Tracking

X

Sensitivity

Min. illumination day mode (color)

۰.۰۲۲۵ lux

Min. Illumination night mode (B/W)

۰.۰  lux

Starlight (extreme low-light)

√

Integrated IR-lighting

√ Infrared

Optional IR-lighting

X

Lens

Automatic Back Focus (ABF)

X

Varifocal

√

Automatic Varifocal (AVF)

√

Iris control

–

Focal length from

۲.۸ mm

Focal length till

۱۲ mm

Horizontal Angle of View (HAoV)

۳۳° – ۱۰۰°

Min. view angle (H)

۳۳°

Min. view angle (V)

۱۹°

Max. view angle (H)

۱۰۰°

Max. view angle (V)

۵۲°

DCRI distances (in m with 100 lux illumination)

Detection

۳۳-۱۳۰  m

Classification

۱۳-۵۱  m

Recognition

۶-۲۶  m

Identification

۳-۱۳  m

Storage

(micro)SD card slot

√

Direct-to-iSCSI

√

Cloud storage

√

Connections

Alarm input / output

√

Audio in/out

√

Hybrid

√

Confrontation monitor

√

۱۲VDC power output

۲۴ VAC or +12 VDC

Housing

Weather rating

IP67

Vandal resistant

IK10

Corrosion resistant

X

Operating temperature

-۴۰° to 60° C
