مشخصات فنی دوربین مداربسته بوش NBE-5503-AL
Subtypes

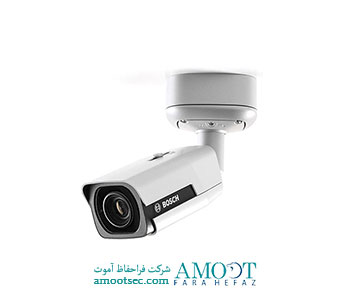

NBE-5503-AL DINION IP 5000i IR
Basic Features
Resolution ۵MP
Image sensor type ۱/۲.۹ inch CMOS
Max. frames per second (fps) ۳۰ [email protected]
Indoor / outdoor Indoor/Outdoor
Day / night Day/Night
Built in ir √
Wide Dynamic Range ۱۲۰db
ONVIF conformant √
Built-in microphone X
Power over Ethernet (PoE) √
Advanced Features
Compression H.265; H.264; M- JPEG
Multi-streaming √
Intelligent Dynamic Noise Reduction √
Intelligent streaming √
Intelligent Auto Exposure √
Remote commissioning √
Privacy masking √
Region Of Interest (ROI) & E-PTZ √ROI& E-PTZ
Region Of Interest tracking √
No. of presets / guard tours X
Wiper X
Thermal X
Alarm triggering √
Video analytics at the edge √
Tamper detection √
Video motion detection √
Audio detection √
Face detection √
PTZ Intelligent Tracking X
Sensitivity
Min. illumination day mode (color) ۰.۳۶۹ lux
Min. Illumination night mode (B/W) ۰.۰ lux
Starlight (extreme low-light) X
Integrated IR-lighting √ Infrared
Optional IR-lighting X
Lens
Automatic Back Focus (ABF) X
Varifocal √
Automatic Varifocal (AVF) √
Iris control –
Focal length from ۲.۷ mm
Focal length till ۱۲ mm
Horizontal Angle of View (HAoV) ۲۸° – ۹۵°
Min. view angle (H) ۲۸°
Min. view angle (V) ۱۶°
Max. view angle (H) ۹۵°
Max. view angle (V) ۵۰°
DCRI distances (in m with 100 lux illumination)
Detection ۵۶-۲۴۶ m
Classification ۲۲-۹۸ m
Recognition ۱۱-۴۹ m
Identification ۶-۲۵ m
Storage
(micro)SD card slot √
Direct-to-iSCSI √
Cloud storage √
Connections
Alarm input / output √
Audio in/out √
Hybrid √
Confrontation monitor √
۱۲VDC power output ۲۴ VAC or +12 VDC
Housing
Weather rating IP67
Vandal resistant IK10
Corrosion resistant X
Operating temperature -۴۰° to 60° C
