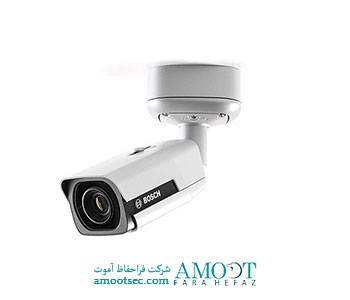

مشخصات فنی دوربین مداربسته بوش NTI-50022-A3
Subtypes
NTI-50022-A3S Bullet 2MP 2.8-12mm auto IP66 IK08
Basic Features
Resolution ۱۰۸۰p resolution for sharp images
Image sensor type ۱/۲.۸ inch CMOS
Max. frames per second (fps) ۳۰
Indoor / outdoor outdoor
Day / night Auto (adjustable), Color, Monochrome
Built in ir Built-in IR illuminator with 30 m (98 ft) viewing distance
Wide Dynamic Range ۷۶ db
ONVIF conformant √
Built-in microphone X
Power over Ethernet (PoE) √
Advanced Features
Compression H.264; M-JPEG
Multi-streaming √
Intelligent Dynamic Noise Reduction √
Intelligent streaming √
Intelligent Auto Exposure X
Remote commissioning X
Privacy masking √
Region Of Interest (ROI) & E-PTZ √
Region Of Interest tracking X
No. of presets / guard tours X
Wiper X
Thermal X
Alarm triggering √
Video analytics at the edge √
Tamper detection √
Video motion detection √
Audio detection √
Face detection X
PTZ Intelligent Tracking e-ptz
Sensitivity
Min. illumination day mode (color) ۰.۷ lx
Min. Illumination night mode (B/W) ۰.۰ lx
Starlight (extreme low-light) X
Integrated IR-lighting √
Optional IR-lighting X
Lens Automatic Varifocal 2.8 to 12 mm, DC Iris F1.4 – ۳۶۰
Automatic Back Focus (ABF) X
Varifocal √
Automatic Varifocal (AVF) √
Iris control √
Focal length from ۲.۸ mm
Focal length till ۱۲ mm
Horizontal Angle of View (HAoV)
Min. view angle (H) ۳۳
Min. view angle (V) ۱۹
Max. view angle (H) ۱۰۰
Max. view angle (V) ۵۲
DCRI distances (in m with 100 lux illumination)
Detection –
Classification –
Recognition –
Identification –
Storage
(micro)SD card slot √
Direct-to-iSCSI √
Cloud storage √
Connections
Alarm input / output √
Audio in/out √
Hybrid √
Confrontation monitor √
۱۲VDC power output √ ۲۴ VAC or +12 VDC
Housing
Weather rating IP66
Vandal resistant IK08
Corrosion resistant X
Operating temperature -۳۰ ºC to +60 ºC
