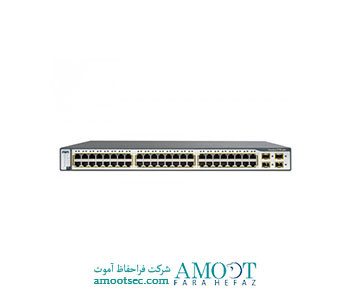

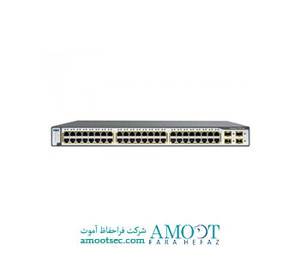

سوییچ سیسکو cisco / WS-C3750G-48TS-E

Subtypes

WS-C3750G-48TS-E

Cisco Catalyst series

Manufacturer

Cisco Systems, Inc

Product Type

Managed,Stackable 48 portsL3Switch

Form Factor

Fixed,Rack Mountable,Stack able/Clustering

Switch Portdensity-Uplinks

۴۸×۱۰/۱۰۰/۱۰۰۰EthernetPorts+4xSFP

Basic Features

Overview

• ۴۸ Ethernet 10/100/1000 ports
• ۴ SFP-based Gigabit Ethernet ports
• ۳۲-Gbps, high-speed stacking bus
• Innovative stacking technology
• ۱ RU stackable, multilayer switch
• Enterprise-class intelligent services delivered to the network edge
• IP Services software feature set (IPS)
• Provides full IPv6 dynamic routing

MAC Address TableSize

۱۲ Kentries

Max Number of Stacks

۹

Routing Protocol

OSPF, IGRP, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPF for IPv6, policybased routing (PBR), RIPng

Remote
Management
Protocol

SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH

Authentication
Method

Kerberos, Secure Shell (SSH), RADIUS, TACACS+

Features

Flow control, full duplex capability, Layer 3 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation,
ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, stackable, IPv6 support, Trivial File
Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS)

Compliant
Standards

IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s

DRAM Memory

۱۲۸ MB

Flash Memory

۳۲ MB Flash

LED Status
Lights
Indicators

Port status, link activity, port transmission speed, port duplex mode, status

Connectivity / Expansion Slots

Interfaces

۴۸ x 10Base-T/100Base-TX/1000Base-T – RJ-45
۱ x console – RJ-45 – management
Network stack device :
۴ x SFP (mini-GBIC)

Power Supply Specifications

Power Device

Power supply – internal

Voltage
Required

AC 120/230 V ( 50/60 Hz )

Power
Consumption
Operational

۱۶۰ Watt

Features

Redundant Power System (RPS) connector

Dimensions / Weight / Miscellaneous

۴۴.۵ cm/40.9 cm/4.4 cm

Weight

۶.۴ kg

MTBF

۱۶۵,۲۴۳ hour(s)

Compliant
Standards

CE, FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC
۶۰۹۵۰, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, FCC Part 15, MIC, AS/NZS 3548

System Software

Software
Included

Cisco IOS IP Services

Manufacturer Warranty

Service &
Support

Limited lifetime warranty

Service &
Support
Details

Limited warranty – lifetime
