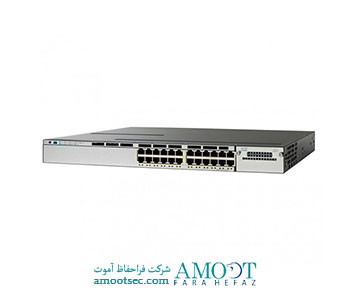

WS-C3850-24T-S Specification |
|
|
model info: |
WS-C3850-24T-S |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
۲۴ x 10/100/1000 |
|
Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
None |
|
Switching Capacity |
۹۲Gbps |
|
Maximum stacking number |
up to 9 switches with same IOS feature set in same series |
|
Stack Bandwidth |
۴۸۰Gbps |
|
Forwarding Performance |
۶۸.۴Mpps |
|
FNF entries |
۲۴,۰۰۰ flows |
|
Maximum VLANs IDs |
۴,۰۰۰ |
|
MAC Address Table Size |
۳۲K |
|
CPU |
Multicore CPU |
|
RAM |
۴ G |
|
Flash Memory |
۲ G |
|
Wireless |
|
|
Number of AP per switch/stack |
۱۰۰ |
|
Number of wireless clients per switch/stack |
۲۰۰۰ |
|
Total number of WLANs per switch |
۶۴ |
|
Wireless bandwidth per switch |
up to 20Gbps |
|
Supported Aironet AP series |
۳۶۰۰, ۳۵۰۰, ۲۶۰۰, ۱۶۰۰, ۱۲۶۰, ۱۱۴۰, ۱۰۴۰ |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
۱ network module slot and 1 power redundant slot |
|
Network Modules Selection |
● C3850-NM-4-1G: 4 x 1G uplinks network module |
|
Stacking cable |
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
|
Stack Power Cable (recommended) |
●CAB-SPWR-30CM stack power cable with a 30CM length |
|
Power supply |
PWR-C1-350WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
۱۰۰V-240V |
|
Power Consumption of standalone(in Watts) |
۸۴.۹۷ (max) |
|
Miscellaneous |
|
|
Width |
۱۷.۵ Inches (44.5 cm) |
|
Depth |
۱۷.۷ Inches (44.5 Cm) |
|
Height |
۱.۷۵ Inches (4.45 cm) |
|
Weight |
۱۵.۹ Pounds (7.2Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
۳۰۳,۲۳۰ |
|
Compliant Standards |
● IEEE 802.1D Spanning Tree Protoco ● IEEE 802.3 10BASE-T |
|
System software / license |
|
|
System software |
IOS IP Base (Upgradable) |
|
EnergyWise license |
ENERGY-MGMT, ENERGY-MGT-100-K9 |
|
Software license |
C3850-24-S-E: IP Base to IP Services RTU paper license L-C3850-24-S-E: IP Base to IP Services RTU electronic license |
|
Access Point Licenses |
●L-LIC-CT3850-UPG: Primary upgrade license SKU for Cisco 3850 wireless controller (e-delivery) |
|
Features |
●RPS Support ● Jumbo Frames ● VLANS ●Voice Vlan ●VTPv2 ●CDPv2 ●LLDP ● ۸۰۲.۳ad LACP and PAgP ● PVST/PVST+ ● ۸۰۲.۱W/802.1S ●Port Fast/Uplink Fast ●Dynamic Trunking Protocol (DTP) ● port CoS Trust and Override ● Trusted Boundary ● ACL Classification ●ingress Policing ● Auto QoS ● Per VLAN policies ● ۸۰۲.۱p queues ● Scheduling ● Priority Queuing ● Configure CoS Priority Queues ●Configure CoS Priority Queues ● Configure Queue Weights ● Configure Buffers and Thresholds ●Class & Policy Maps ● Modify CoS and DSCP Mapping ● Weighted Tail Drop ● IGMPv1,v2,v3 and MLDv1, v2 ● DHCP server ● DSCP transparency ● HSRP, VRRP, BLGP ● RIPv1, v2 EIGRP, PIM OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4 ● VRF-lite ● PIM-SM/DM, PIM sparse-dense mode, SSM ● Flexible Netflow |
|
Advanced Network security |
● Port security ● DHCP snooping ●Dynamic ARP inspection (DAI) ● IP source guard ●The Unicast Reverse Path Forwarding (uRPF) |
|
Management |
●BRIDGE-MIB ●CISCO-AUTH-FRAMEWORK-MIB ●CISCO-SNMP-TARGET-EXT-MIB ●CISCO-STACKMAKER-MIB |
|
Technical Support and Services |
● Cisco SMARTnet Service ● Cisco Smart Foundation Service ● Cisco SP Base Service ● Cisco Focused Technical Support Services |
|
Environmental Ranges |
|
|
With AC power supply Operating environment and altitude |
|
|
Operating temperature up to 5000 ft (1500 m) |
۲۳ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
۲۳ºF to 104ºF (-5ºC to +40ºC) |
|
Short-term exception at sealevel with single fan failure |
۲۳ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception up to 5000 feet (1500 m) |
۲۳ºF to 122ºF (-5ºC to 50ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
۲۳ºF to 113ºF (-5ºC to 45ºC) |
|
With DC power supply Operating environment and altitude (NEBS) |
|
|
Operating temperature up to 6000 ft (1800 m) |
۲۳ºF to 113ºF (-5ºC to +45ºC) |
|
Operating temperature up to 10,000 ft (3000 m) |
۲۳ºF to 104ºF (-5ºC to +40ºC) |
|
Operating temperature up to 13,000 ft (4000m) |
۲۳ºF to 95ºF (-5ºC to 35ºC) |
|
Short-term exception up to 6,000 feet (1800 m) |
۲۳ºF to 131ºF (-5ºC to +55ºC) |
|
Short-term exception up to 10,000 feet (3000 m) |
۲۳ºF to 122ºF (-5ºC to +50ºC) |
|
Short-term exception up to 13,000 feet (4000 m) |
۲۳ºF to 113ºF (-5ºC to +45ºC) |
|
Short-term exception at sealevel with single fan failure |
۲۳ºF to 113ºF (-5ºC to +45º) |
|
Storage environment |
-۴۰ºF to 160ºF (-40ºC to 70ºC) |
|
Operating altitude |
Up to 13,000 Feet (Up to 4000 Meters) |
|
Storage altitude |
Up to 15,000 Feet (Up to 4573 Meters) |
|
Operating relative humidity |
۱۰% to 95% noncondensing |
|
Storage relative humidity |
۱۰% to 95% noncondensing |
