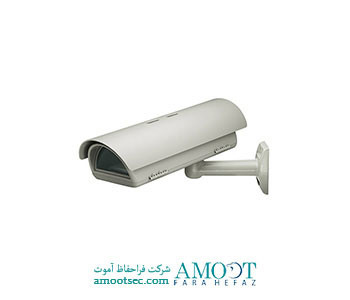

کاور دوربین مداربسته ویدیوتک / VERSO

مشخصات فنی کاور دوربین مداربسته ویدیوتک / VERSO

Subtypes
VERSO Side opening camera housing
Mechanical
Material Technopolymer
IK Protection Degree IK10
Housing’s Window Polycarbonate
Internal Usable Area ۷۰x70x270mm (2.7×2.7×10.6in)
Cable Glands ۳xM16
Glass Cleaning Device x
Electrical
Supply voltage/current consumption ۱۲/۲۴Vac, 1A max
۱۲۰/۲۳۰Vac, 400mA max
Heater ۱۲۰/۲۳۰Vac 40W
۱۲/۲۴Vac 20W
Camera power supply IN ۱۰۰/۲۴۰Vac, 50-60Hz
۲۳۰Vac, 50Hz
Camera power supply OUT OUT 12Vdc, 1.25A
OUT 24Vac, 50Hz, 400mA
Power consumption Heater (120Vac/230Vac):40W
Heater (12Vac/24Vac):20W
Environment
Operating temperature Version with Heater: From -20°C up to +60°C
Relative humidity From 10% up to 95% (no condensation)
IP protection degree IP66, IP67 (with cable gland)
