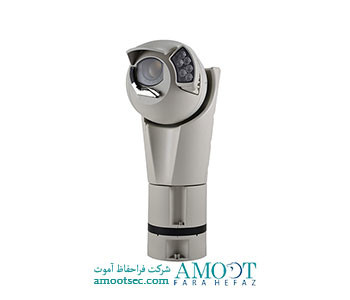

کاور دوربین مداربسته ویدیوتک / ULISSE EVO

مشخصات فنی کاور دوربین مداربسته ویدیوتک / ULISSE EVO

Subtypes
ULISSE EVO PTZ camera with DELUX technology
Camera
Video Output IP Video Output
Type of camera Day/Night
Resolution Full HD
Minimum illumination Colour: 0.006lx
B/W: 0.0006lx
Zoom ۳۰x (16x, digital zoom)
Lens ۴.۵*۱۳۵mm
Mechanical
Material Constructed from Aluminium
Unit Weight ۷.۱kg (15.6lb)(7.4kg (16.3lb) with LED illuminator)
Painting Epoxy-polyester powder painted
Horizontal Rotation ۳۶۰°, continues rotation
Vertical Rotation From -90° up to +90°
Horizontal speed (variable) From 0.1°/s up to 250°/s
Tilt speed (Variable) From 0.1°/s up to 250°/s
Position accuracy ۰.۰۵°
Possibility of installing LED illumination √
Glass cleaning device Integrated wiper
Electrical
Supply voltage/current consumption ۲۴Vac, 5A, 50/60Hz
۲۴Vdc, 5A
PoE 90W
Power consumption ۷۰W max (peak on switch-on, with illuminator)
Software
Communication Protocol ONVIF, Profile S & Q
Video Compression H.264/AVC. MJPEG., JPEG, MPEG4
Environment
Operating temperature From -40°C up to +65°C
Relative humidity From 10% up to 95%
IP protection degree IP66, IP67, IP68
