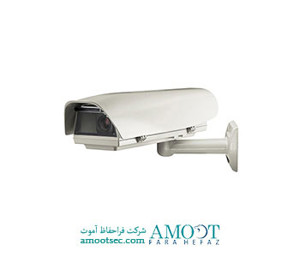

کاور دوربین مداربسته ویدیوتک / HOV

مشخصات فنی  کاور دوربین مداربسته ویدیوتک / HOV

Subtypes
HOV Side opening aluminum camera housing
Mechanical
Material Constructed from Aluminium Sunshield in ABS
Housing’s Window Extra Clear Glass
Internal Usable Area ۱۰۰x70x250mm (3.9×2.7×9.8in)
Cable Glands ۳xM16
Glass Cleaning Device Integrated wiper (optional)
Electrical
Supply voltage/current consumption ۱۲/۲۴Vac, 1A max
۱۲۰/۲۳۰Vac, 400mA max
Heater IN 24Vac / IN 120-230Vac
Camera power supply IN In from 100Vac up to 240Vac
In from 230Vac, 50Hz
Camera power supply OUT OUT 12Vdc, 50/60Hz, 1.25A
OUT 24Vac, 50Hz, 400mA
Power consumption x
Environment
Operating temperature Version with Heater: From -20°C up to +65°C
Relative humidity From 10% up to 95% (no condensation)
IP protection degree IP66, IP67 (with cable glands or optional sealing rings)



جهت دریافت مشاوره فنی و بهترین قیمت کاور ویدئوتک فروشگاه آموت در خدمت شماست .
