کاور دوربین مداربسته ویدیوتک / HEG

مشخصات فنی کاور دوربین مداربسته ویدیوتک / HEG

Subtypes

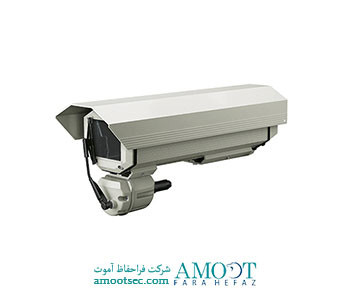

HEG Large Sized Aluminium Camera Housing
Mechanical
Material Constructed from aluminum
IK Protection Degree —
Housing’s Window Extra Clear Glass
Internal Usable Area ۱۳۴x88x273mm (5.1×3.5×10.7in)
Cable Glands ۳xM16
Glass Cleaning Device Wiper (Accessory)
Electrical
Supply voltage/current consumption ۱۲Vdc, 1.6A max
۲۴Vac, 0.85A max, 50/60H
۱۲۰Vac, 0.35A max, 50/60Hz
۲۳۰Vac, 0.18A max
Camera power supply IN ۱۰۰Vac up to 240Vac, 50/60Hz
۲۳۰Vac, 50Hz
Camera power supply OUT ۱۲Vdc, 1.25A
۲۴Vdc, 50Hz, 400mA
Power consumption
Environment
Operating temperature Version with triple Heater, continuous duty fan: From -50°C up to +60°C
Relative humidity From 10% up to 95% (no condensation)
IP protection degree IP66, IP67 (With cable glands or sealing rings)
