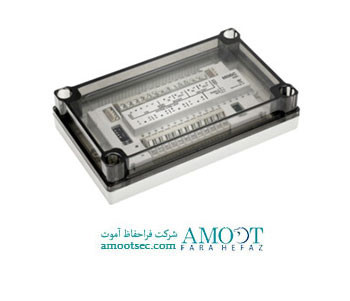

The ZONE-MIMIC module is assembled in a Dual Gang (DG) Box and is designed to be used with our Chameleon addressable fire alarm control panels.
The module can be used with a ‘Mimic LED Board’, to signal fire conditions for each individual zone or system status. It also features a ‘lamp test’ input, an alarm buzzer driver output and a ‘local’ alarm buzzer silence input. These are just some of the features that the ZONE-MIMIC offers.
|UPPLY VOLTAGE||20V DC to 30V DC|
|NORMAL OPERATION||7mA ( Iq ) + 4,5mA per active LED + interface current (if applied)
It is not recommended to exceed 10 modules in series if the panel AUX power supply is used. Use an external dedicated power supply.
|MAX. CABLE SIZE||2.5 mm²|
|COLOUR / CASE MATERIAL||White / ABS|
|OPERATION TEMPERATURE||-10ºC to 50ºC|
|MAX. HUMIDITY||95% RH Non-Condensing|
|DIMENSIONS||150 (W) x 90 (L) x 32 (H) mm|
|WEIGHT||216g inc. packaging|
