ولوسیتی Coaxial Connectors / V-7024

Subtypes

V-7024

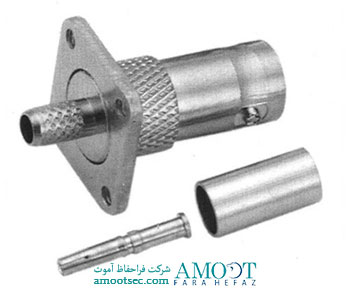

    Square Flange Receptacle Jack Crimp   UG-1802/U

Electrical Characteristics

Impendence

۵۰ ohm – 75 ohm

Frequency Range

۰-۴ GHz – 0-1 GHz

V.S.W.R

 Straight : 1.3 Max , R/A : 1.5 Max

Insulation loss

۰.۲ dB max @  ۳GHz

Insulation resistance

۵۰۰۰ Megaohms min.

Contact resistance

Center Contact

۳ milliohms Max

Outer conductor

۲ milliohms Max

Working voltage in VRMS( at sea level / at 70000ft)

۵۰۰ volts rms max at sea level

Dielectric withstanding voltage in VRMS ( at sea level )

۱۵۰۰ volts rms max at sea level

Mechanical Characteristics

Durability

۵۰۰ matings

Force to engage and disengage

  –

Proof torque

۱۵ in-lbs min

Coupling mechanism retention force

–

Cabling retention

RG58, 141, 142, 223… > 40 lbs min

RG174, 188, 316…. > 20 lbs min

RG174, 188, 316…. > 20 lbs min      RG59, 62A, 210…. > 40 lbs mi

Center contact retention force

۶ lbs min

Environmental Characteristics

Temperature Range

-۶۵°C to +165°C

Thermal Shock

MIL-STD-202 Method 107 Test Cond B

Corrosion (salt spray)

MIL-STD-202 Method 101 Test Cond B

Vibration

MIL-STD-202 Method 204 Test Cond B

Shock

–

Materials

Body(nut)/Center Male contact/Outer Contact

Brass

Center female contacts

Brass / Beryllium Copper

Ferrules

Brass

Insulator

Teflon

Plating

Body

 gold, Silver per requirement, Nickel,

Coupling nut / Design

–

Center Contact

Gold

Outer Contacts / Design

–
